| Modello | Q [m3/h] | LWA [dB(A)] | X(0,25)-Y(0,25) [m] | Dpt [Pa] | ||||
|---|---|---|---|---|---|---|---|---|
| min | max | min | max | min | max | min | max | |
| 200x100 | 5 | 25 | 21 | 29 | 1,7 | 6,7 | 5 | 55 |
| 275x100 | 10 | 40 | 21 | 29 | 1,7 | 6,7 | 5 | 55 |
| 350x100 | 15 | 55 | 21 | 29 | 1,7 | 6,7 | 5 | 55 |
| 425x100 | 20 | 70 | 21 | 29 | 1,7 | 6,7 | 5 | 55 |
| 500x100 | 25 | 85 | 21 | 29 | 1,7 | 6,7 | 5 | 55 |
| 700x100 | 30 | 100 | 21 | 29 | 1,7 | 6,7 | 5 | 55 |
| 800x100 | 35 | 115 | 21 | 29 | 1,7 | 6,7 | 5 | 55 |
| 1000x100 | 45 | 145 | 21 | 29 | 1,7 | 6,7 | 5 | 55 |
| 1200x100 | 55 | 175 | 21 | 29 | 1,7 | 6,7 | 5 | 55 |
| 275x150 | 25 | 75 | 23 | 32 | 1,9 | 6,9 | 5 | 55 |
| 350x150 | 30 | 110 | 23 | 32 | 1,9 | 6,9 | 5 | 55 |
| 425x150 | 40 | 140 | 23 | 32 | 1,9 | 6,9 | 5 | 55 |
| 500x150 | 50 | 170 | 23 | 32 | 1,9 | 6,9 | 5 | 55 |
| 700x150 | 60 | 200 | 23 | 32 | 1,9 | 6,9 | 5 | 55 |
| 800x150 | 70 | 230 | 23 | 32 | 1,9 | 6,9 | 5 | 55 |
| 1000x150 | 90 | 290 | 23 | 32 | 1,9 | 6,9 | 5 | 55 |
| 1200x150 | 105 | 355 | 23 | 32 | 1,9 | 6,9 | 5 | 55 |
| 275x200 | 35 | 115 | 25 | 34 | 2,1 | 7,3 | 5 | 55 |
| 350x200 | 50 | 160 | 25 | 34 | 2,1 | 7,3 | 5 | 55 |
| 425x200 | 60 | 205 | 25 | 34 | 2,1 | 7,3 | 5 | 55 |
| 500x200 | 75 | 255 | 25 | 34 | 2,1 | 7,3 | 5 | 55 |
| 700x200 | 90 | 300 | 25 | 34 | 2,1 | 7,3 | 5 | 55 |
| 800x200 | 105 | 345 | 25 | 34 | 2,1 | 7,3 | 5 | 55 |
| 1000x200 | 130 | 440 | 25 | 34 | 2,1 | 7,3 | 5 | 55 |
| 1200x200 | 160 | 530 | 25 | 34 | 2,1 | 7,3 | 5 | 55 |

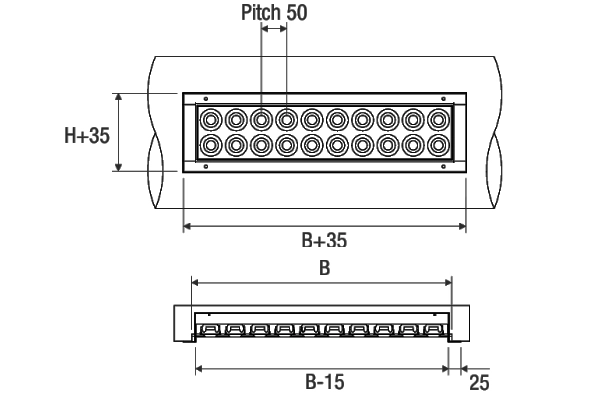

| BxH mm | Condotto di installazione | Ugelli per diffusore | File ugelli | EDMUPC | ESC |
|---|---|---|---|---|---|
| Ø mm | N° | N° | € | € | |
| 200x100 | 200/400 | 3 | 1 | A.R. | 12,84 € |
| 275x100 | 5 | 1 | A.R. | A.R. | |
| 350x100 | 7 | 1 | A.R. | 14,67 € | |
| 425x100 | 9 | 1 | A.R. | 18,03 € | |
| 500x100 | 11 | 1 | A.R. | 19,46 € | |
| 700x100 | 13 | 1 | A.R. | 23,12 € | |
| 800x100 | 15 | 1 | A.R. | 27,59 € | |
| 1000x100 | 19 | 1 | A.R. | 33,84 € | |
| 1200x100 | 23 | 1 | A.R. | 44,24 € | |
| 275x150 | 300/600 | 10 | 2 | A.R. | A.R. |
| 350x150 | 14 | 2 | A.R. | 19,83 € | |
| 425x150 | 18 | 2 | A.R. | 19,42 € | |
| 500x150 | 22 | 2 | A.R. | 21,06 € | |
| 700x150 | 26 | 2 | A.R. | 27,07 € | |
| 800x150 | 30 | 2 | A.R. | 30,24 € | |
| 1000x150 | 38 | 2 | A.R. | 36,43 € | |
| 1200x150 | 46 | 2 | A.R. | 47,45 € | |
| 275x200 | 400/1000 | 15 | 3 | A.R. | A.R. |
| 350x200 | 21 | 3 | A.R. | 22,02 € | |
| 425x200 | 27 | 3 | A.R. | 25,92 € | |
| 500x200 | 33 | 3 | A.R. | 25,66 € | |
| 700x200 | 39 | 3 | A.R. | 32,58 € | |
| 800x200 | 45 | 3 | A.R. | 35,78 € | |
| 1000x200 | 57 | 3 | A.R. | 39,44 € | |
| 1200x200 | 69 | 3 | A.R. | 50,68 € |
